Description
Part of the Hydro-X Environment Control System

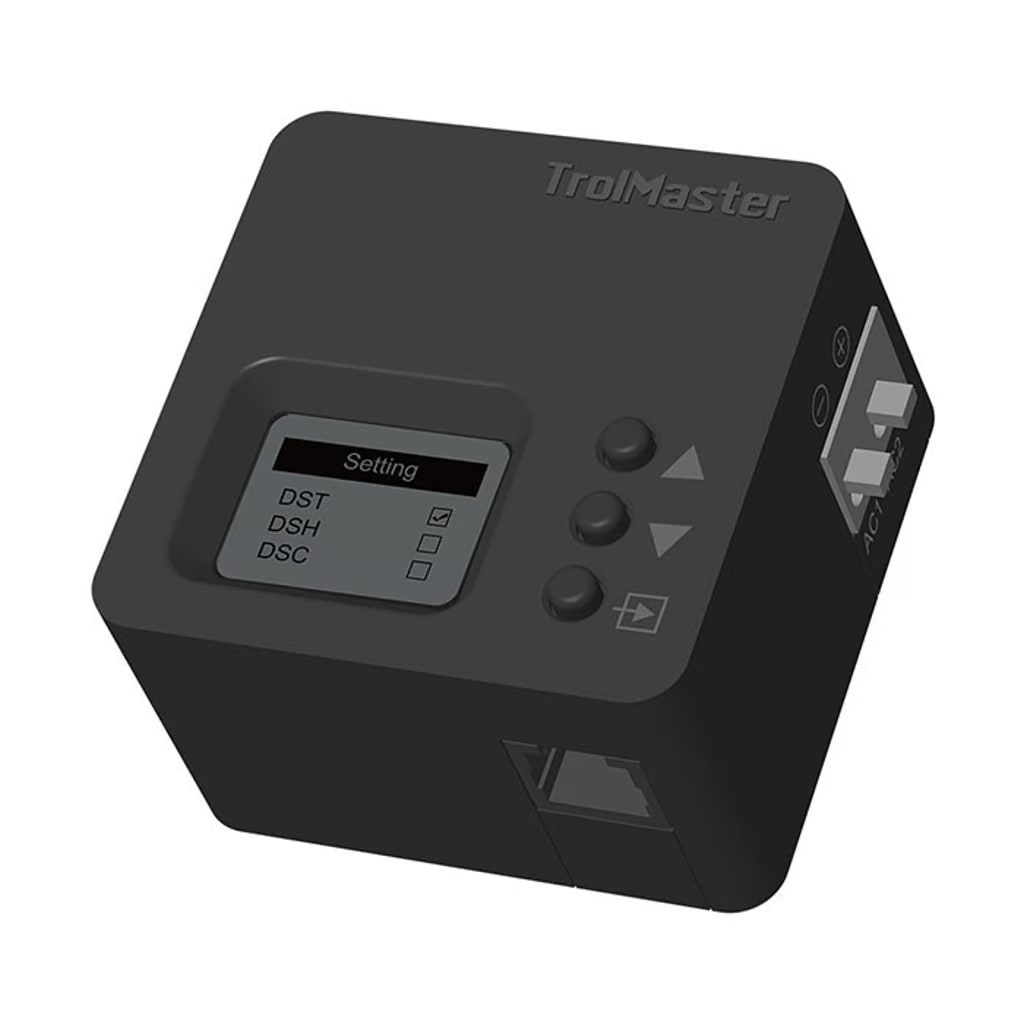

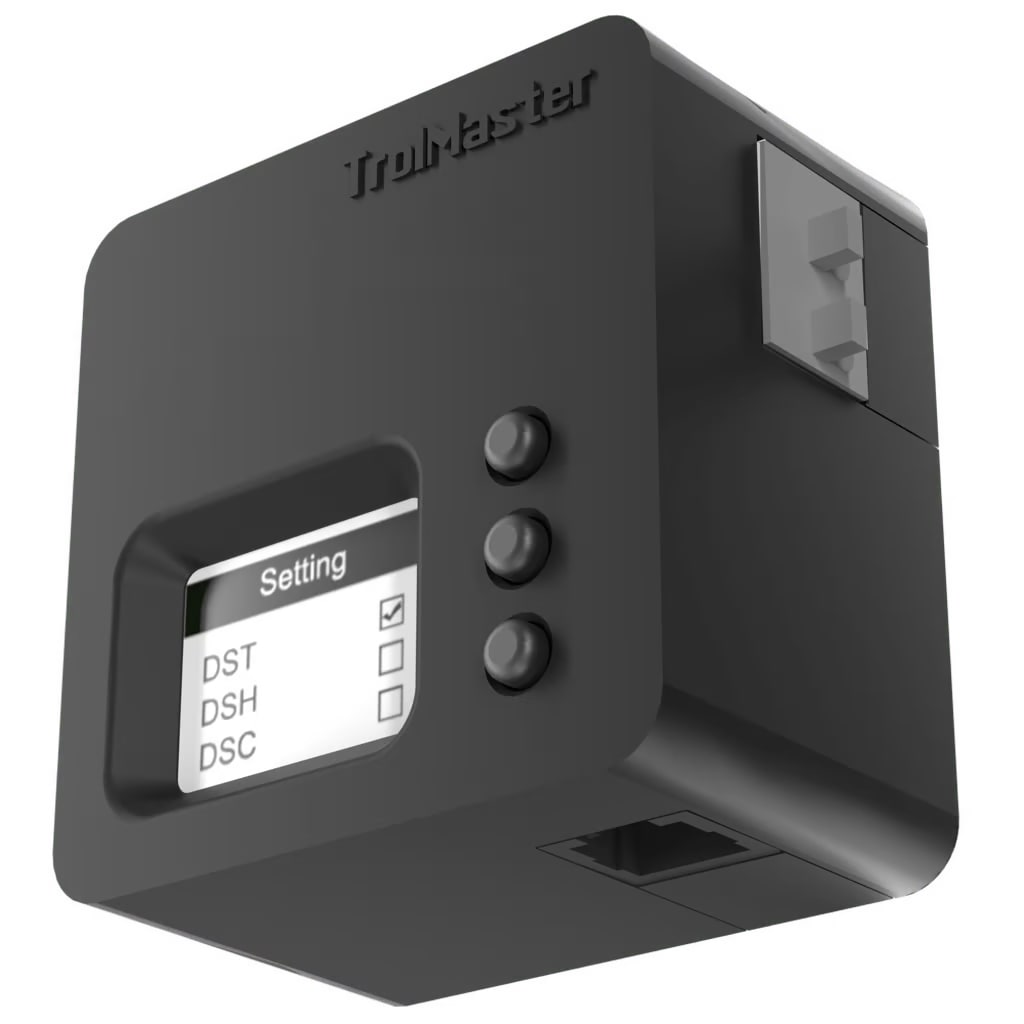

The Trolmaster DSV-1 is a low-voltage output module that can be used on the Hydro-X HCS-1 , Hydro-X Pro HCS-2 controllers. The DSV-1 can be addressed to be used as a temperature, humidity, CO2, or timer device module.
Multiple voltage outputs are selectable by the user. The DSV-1 can output either 12 or 24 VDC up to .5 amps, or 12 or 24 VAC up to 4.8VA. Once the module is configured it will activate the low-volt device wired to the DSV-1. This allows the user to directly connect low voltage devices such as solenoids, valves, audiovisual alarms, or any other device that requires 12 to 24 volt AC or DC power to operate.
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X and Hydro-X Pro
- Multiple purposes assigment
- Plug & Play
Package Contents
- 1 x Low-Volt Station DSV-1
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specifications
- Input Voltage: 100~240VAC, 50/60Hz
- Output Voltage: DC24/AC24 0.25A -- DC12/ AC12 0.5A
- Working Environment: Temperature 32-122°F, Humidity=90%
- Packaging Dimensions: 85mm x 80mm x 90mm
Specifications
| Brand | TrolMaster |
|---|
Shipping & Returns
Shipping
Ground: 3–5 shipping days. Freight: 3–10 business days. Most orders are processed within 3–5 business days. We ship within the contiguous 48 states plus Alaska and Hawaii. Shipping policy
Exchanges & store credit
Exchanges or store credit within 7 calendar days of delivery for new, unused items in original packaging. A 15% restocking fee applies to non-defective items returned for store credit. Refund policy

TrolMaster Hydro-X Low-Volt Station
$55.99
