The Complete Trolmaster Hydro-X Guide for Commercial Cannabis (2026): Controllers, Device Station Modules, and the Integration Backbone That Ties Your Whole Room Together

Trolmaster is the canonical commercial cannabis environmental controller. The 2026 guide to the Hydro-X family, device station modules, and integration with lights, HVAC, and CO2.

A commercial cultivator called the shop last month mid-build on a 4-room facility. He had Gavita 1700e LEDs specified for lighting, Quest 335 dehumidifiers specified for humidity, a CO2 burner per room, and mini-split AC units for temperature. Each piece of equipment had its own controller, its own timer, its own setpoint logic. He wanted to know how to make them work together instead of fighting each other. The classic failure mode he was worried about: the AC pulling temperature down while the dehumidifier dumped heat into the room, the CO2 burner running while the exhaust fan vented it straight back out, the lights ramping while nothing else knew the photoperiod had shifted. The answer was a single environmental controller acting as the integration backbone. Trolmaster Hydro-X Plus, one per room, with device station modules connecting each piece of equipment to a unified brain that runs the whole environment off one set of sensors and one VPD-aware program. He stopped buying isolated controllers and started buying one system. The rooms now hold VPD setpoint within a tight band across the full photoperiod because every device coordinates instead of competing.

Trolmaster is the canonical professional-grade modular environmental control system for commercial cannabis. The architecture is the brand's identity: a central controller (the Hydro-X family) plus hard-wired modular device stations connected by standard RJ12 cable in a daisy-chain. Each device station connects a specific equipment category to the controller, temperature, humidity, CO2, or any time-based device, so a single brain coordinates the entire room off one set of sensors. The hard-wired RJ12 design is a deliberate commercial-reliability choice versus wireless controllers, eliminating signal interference and enabling flexible expansion as the facility grows. The free TrolMaster app provides remote monitoring, push notifications, historical data graphs, and setpoint alerts via cloud connectivity, with micro-SD local logging as backup.

This pillar is the retailer's complete operational manual for Trolmaster in 2026. The system architecture explained, the Hydro-X controller family mapped (HCS-1 base, Hydro-X Plus, Hydro-X Pro), the device station module system fully detailed (DST, DSH, DSC, DSP, DSR, DSD, DCC, HS-1, VFD-1), the sensor ecosystem, how Trolmaster integrates with the cluster's other equipment (Gavita lights, Quest/Anden/AirGrean dehumidifiers, CO2 systems), the hard-wired versus wireless positioning, VPD automation, configuration framework, cost economics, and head-to-head versus Pulse and AC Infinity. We sell Trolmaster at Modern Farms alongside the lighting and HVAC equipment it controls. The case below is the honest one.

The 30-Second Answer

Trolmaster Hydro-X is a modular environmental controller for commercial cannabis. The system has three parts: a controller (the brain), sensors (which measure the environment), and device station modules (which connect and control your equipment). Everything connects by hard-wired RJ12 cable in a daisy-chain, which is the brand's reliability differentiator versus wireless controllers.

Three controller tiers. Hydro-X (HCS-1) is the base single-zone controller at approximately $309, ships with a 3-in-1 temp/humidity/photocell sensor, controls up to 512 ThinkGrow lights or 80 third-party lights plus HVAC, dehumidifiers, humidifiers, and CO2. Hydro-X Plus (HCS-3) adds an 800x480 7-inch touchscreen, DLI control, sunrise/sunset simulation, overheat protection, spectrum and group lighting control, and smoke plus water-leak detection (up to 10 each); controls 8 temperature devices, 8 humidity devices, 4 CO2 devices, and 12 programmable timer devices with up to 50 schedules. Hydro-X Pro is the industrial tier with VFD (variable-frequency drive) control for 3-phase AC motors (large industrial fans) and the most advanced settings.

The device station modules are the operational core. DST-1 (120V) and DST-2 (240V) control temperature devices (AC, mini-split, heaters). DSH-1 (120V) and DSH-2 (240V) control humidity devices (humidifiers, dehumidifiers). DSC-1 controls CO2 devices (generators, regulators, exhaust). DSP-1 (120V) and DSP-2 (240V) are program/timer modules for any time-controlled device. DSR-1 is a 25-amp high-current relay station configurable as any device type. HS-1 is a dedicated dehumidifier station that handles high-amperage inrush current. DCC-1 is a dual-condition controller. VFD-1 plus Delta-1 controls 3-phase industrial fans. Most modules are rated 10 amps; the DSR-1 handles up to 25 amps.

Buy Trolmaster if you're a commercial cannabis cultivator who wants a single integration backbone coordinating lights, HVAC, dehumidification, and CO2 off unified sensors and VPD-aware programming, you value hard-wired reliability over wireless convenience, you need modular expandability as the facility grows, or you want remote monitoring with push-notification alerts for environmental excursions. Skip Trolmaster (or choose a simpler controller) if you're a hobby grower in a single 4x4 to 5x5 tent where an AC Infinity Controller 69 or a Pulse monitor handles the simpler equipment set adequately, you don't have multiple devices needing coordination, or you want the lowest-cost monitoring rather than full equipment control.

The Trolmaster System Architecture

The architecture is the entire reason Trolmaster works as a commercial integration backbone. Worth understanding clearly before mapping the products, because the modular hard-wired design is what separates Trolmaster from simpler controllers.

The three-part system

Every Trolmaster Hydro-X installation has three component categories:

• The controller (the brain): the Hydro-X, Hydro-X Plus, or Hydro-X Pro unit. It reads the sensors, runs the programming logic, and sends commands to the device stations. The controller holds your setpoints, schedules, and rules.
• The sensors (the eyes): the 3-in-1 sensor (temperature, humidity, photocell) standard on HCS-1, the MBS-PRO 4-in-1 sensor on Hydro-X Plus, plus optional CO2 sensors, PAR sensors, smoke detectors, and water-leak detectors. Sensors feed real-time environmental data to the controller.
• The device station modules (the hands): plug-in modules that physically connect your equipment to the system. Each module is a small box with a power plug, an outlet for your device, and an RJ12 port. The controller tells the module when to switch the device on or off based on sensor data and your programming.

The RJ12 daisy-chain

Everything connects by standard RJ12 cable (the same connector type as a telephone handset cord) and RJ12 splitters. Sensors and modules are daisy-chained together: the controller connects to a splitter, the splitter connects to multiple modules and sensors, and additional splitters extend the chain as needed. The design has three operational advantages:

• Interference elimination: hard-wired connections don't suffer the signal dropouts, interference, or range limitations of wireless controllers. In a commercial facility full of high-power lighting ballasts, motors, and electrical noise, hard-wired reliability matters.
• Flexible installation: RJ12 cable is cheap, easy to run, and easy to extend. Modules can be positioned wherever the equipment is, and the daisy-chain accommodates almost any room layout.
• Future expansion: adding a device means adding a module and an RJ12 cable to the chain. No reconfiguration of the existing system, no wireless pairing, no signal-strength concerns. The facility grows by plugging in more modules.

How the system runs an environment

Once connected, the controller runs the room off the sensor data and your programming. A simplified example of how the pieces coordinate during a flower-stage day:

• The 4-in-1 sensor reads temperature, humidity, and light, and a CO2 sensor reads CO2 level.
• The controller compares readings to your VPD-derived setpoints for the current stage.
• If humidity is above setpoint, the controller signals the DSH module to switch on the dehumidifier.
• If temperature rises above setpoint (partly from the dehumidifier's heat output), the controller signals the DST module to switch on the AC or mini-split.
• If CO2 drops below setpoint during lights-on, the controller signals the DSC module to run the CO2 burner or regulator, and coordinates with the exhaust timing so CO2 isn't vented immediately.
• The DSP timer modules run the lights on photoperiod schedule, and on Hydro-X Plus the lighting control ramps intensity with sunrise/sunset simulation and tracks DLI.
• Every device coordinates off the same brain, so the AC isn't fighting the dehumidifier and the CO2 isn't fighting the exhaust.

This coordination is the entire value proposition. Isolated controllers (each device running its own timer and setpoint) create the conflicts the cultivator in the opening was worried about. A unified controller eliminates them.

The Hydro-X Controller Family

Three controller tiers spanning serious hobby through industrial. Worth mapping cleanly because the tier decision drives the entire system capability.

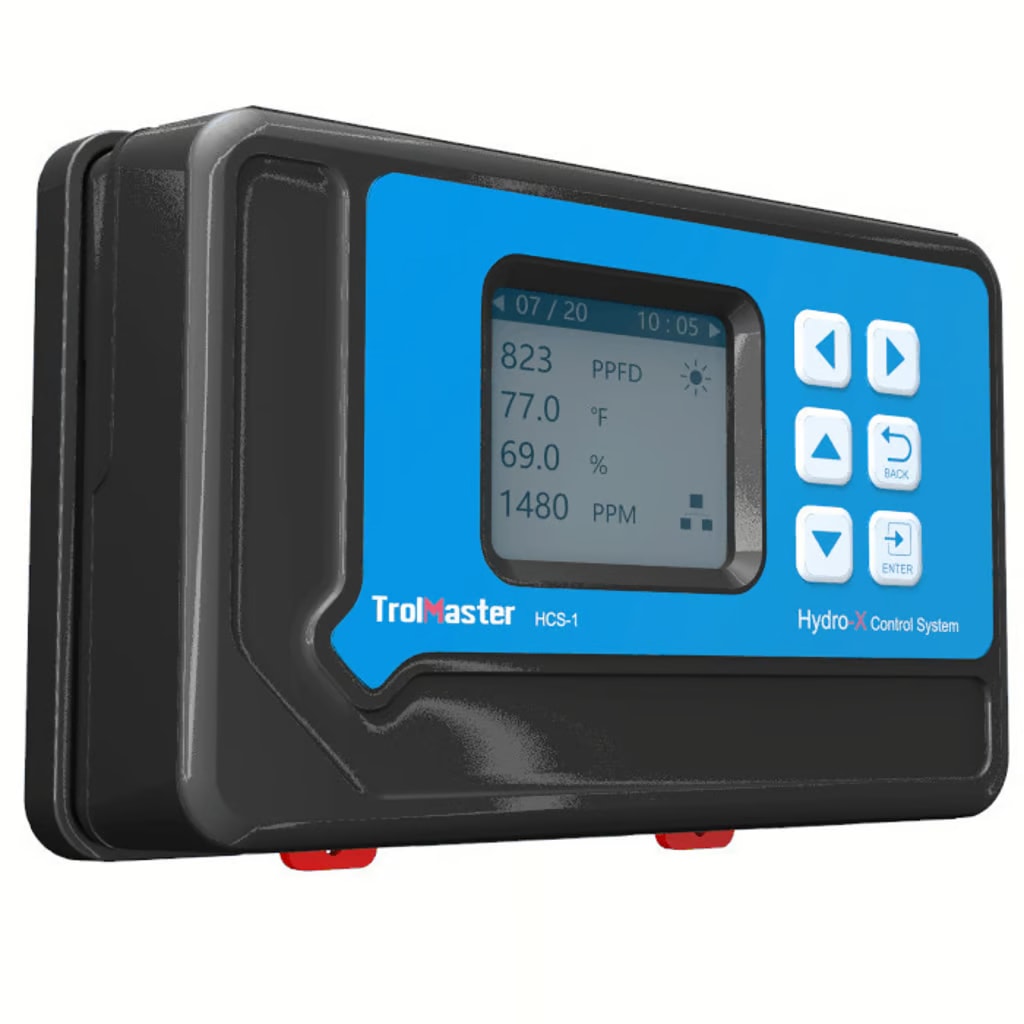

Hydro-X (HCS-1): the base single-zone controller

• The entry Hydro-X controller, approximately $309 retail
• Ships with the 3-in-1 sensor (temperature, humidity, photocell)
• Controls up to 512 ThinkGrow lights or 80 third-party lights (40 per line, two lines)
• Controls HVAC, mini-split AC, commercial dehumidifiers, humidifiers, CO2 generators, and regulators through device station modules
• Two separate lighting control lines for multiple lighting layouts and dimming sequences
• Free TrolMaster app: remote monitor and control, historical data graphs, setpoint alerts
• Micro-SD port for local data logging when internet is unavailable
• Optional CO2 sensor and smoke detector available

The HCS-1 is the right entry point for small commercial single-zone operations and serious hobby growers who want full equipment control rather than just monitoring. The button-and-small-screen interface is less polished than the Plus touchscreen but the control capability is substantial. The HCS-1 is the brain; you add sensors and device station modules to build out the system.

Hydro-X Plus (HCS-3): the touchscreen flagship

• The upgraded controller with 800x480 7-inch color LED touchscreen display
• Ships with the MBS-PRO 4-in-1 sensor
• Controls an unlimited number of lights, 8 temperature devices, 8 humidity devices, 4 CO2 devices, and 12 programmable timer devices
• Up to 50 schedules can be created
• Multiple control modules enable multiple "stages" of temperature and humidity control for a more stable environment
• Advanced lighting: sunrise/sunset simulation, DLI control and tracking, spectrum and group lighting control, automatic light intensity adjustment
• Overheat protection
• Up to 10 smoke detectors and 10 water-leak detectors with smartphone warning notifications
• Free TrolMaster app with full remote monitoring and control

The Hydro-X Plus is the cannabis commercial workhorse. The touchscreen makes programming dramatically easier than the base HCS-1, the expanded device capacity (8 temp, 8 humidity, 4 CO2, 12 timer) handles complex multi-device rooms, and the DLI control plus sunrise/sunset simulation deliver lighting sophistication that matters for yield optimization. The multi-stage temperature and humidity control is the feature that lets the system hold a stable environment by staging multiple devices rather than slamming a single device on and off. For most commercial cannabis flower rooms, the Hydro-X Plus is the right controller tier.

Hydro-X Pro: the industrial tier

• The most advanced Trolmaster controller for large commercial and industrial facilities
• VFD (variable-frequency drive) control for 3-phase AC motors via the VFD-1 module and Delta-1 drive
• Controls industrial-scale fans, blowers, and motorized equipment at variable speed
• The most advanced features and settings in the Trolmaster lineup
• Targets warehouse-scale cultivation, greenhouse operations, and multi-room industrial facilities

The Hydro-X Pro is for facilities running 3-phase industrial equipment (large exhaust fans, industrial blowers, motorized louvers) that need variable-speed control. Most commercial cannabis flower rooms don't need the Pro tier; the Plus handles standard single-phase equipment fully. The Pro becomes necessary at warehouse scale where 3-phase motors and VFD control deliver energy savings and precision on large air-handling equipment.

The tier decision

Serious hobby or small single-zone commercial picks the HCS-1 base controller. Most commercial cannabis flower rooms pick the Hydro-X Plus for the touchscreen, expanded device capacity, DLI control, and multi-stage environmental control. Warehouse-scale industrial operations running 3-phase equipment pick the Hydro-X Pro for VFD control. The controller is per-zone, so multi-room facilities typically run one Hydro-X Plus per flower room.

The Device Station Module System

The modules are where Trolmaster's control capability lives. Each connects a specific equipment category to the controller. Worth detailing fully because the module selection determines what the system can actually control.

Temperature device stations (DST)

• DST-1 (120V): connects and controls 120-volt heating or cooling devices. 10-amp rating.
• DST-2 (240V): connects and controls 240-volt heating or cooling devices up to 10 amps. The right module for 240V mini-split AC units, the most common commercial cannabis cooling equipment.

The DST module switches your AC, mini-split, or heater on and off based on the controller's temperature programming. For mini-splits with their own internal controls, the DST works alongside the Trolmaster mini-split control adapters (the brand makes IR-based adapters for popular mini-split brands that let the Hydro-X command the mini-split directly).

Humidity device stations (DSH and HS-1)

• DSH-1 (120V): connects and controls 120-volt humidifying or dehumidifying devices. 10-amp rating. Note the operational caution from the manufacturer: use dehumidifiers under 7 amps on the DSH to avoid current overload from inrush current.
• DSH-2 (240V): connects and controls 240-volt humidity devices up to 10 amps.
• HS-1: the dedicated dehumidifier station. The HS-1 is engineered specifically to handle the high-amperage inrush current associated with dehumidifiers, eliminating the overload risk that the standard DSH modules carry with larger dehumidifiers. For commercial Quest, Anden, or AirGrean dehumidifiers, the HS-1 is the correct module rather than forcing a high-draw dehumidifier onto a DSH.

This DSH-versus-HS-1 distinction is one of the most common Trolmaster configuration mistakes. Commercial dehumidifiers draw substantial inrush current at startup. Connecting a Quest 335 or Anden A320 to a standard DSH-1 risks tripping the overload protection or damaging the module. The HS-1 handles the inrush correctly. Cross-reference: our Quest, Anden, and AirGrean dehumidifier guides cover the specific amperage draws that determine module selection.

CO2 device stations (DSC)

• DSC-1: connects and controls CO2 devices, supplemental CO2 generators, regulators, or CO2 exhaust controls. Any CO2 device up to 10 amps at 120 volts.

The DSC coordinates CO2 enrichment with the rest of the environment. The controller runs CO2 only during lights-on (when plants photosynthesize and can use it), pauses CO2 during exhaust cycles (so it isn't vented immediately), and holds CO2 at setpoint based on the CO2 sensor reading. The coordination between CO2 enrichment and exhaust timing is a key reason a unified controller outperforms isolated CO2 controllers.

Program/timer device stations (DSP)

• DSP-1 (120V): the program/timer module. Works like a multi-function timer, connecting any device that needs time-based control. World voltage standard (100-240VAC, 50/60Hz), up to 10 amps.
• DSP-2 (240V): the 240-volt program/timer module, same function at higher voltage.

The DSP runs any device on a time schedule: lights, irrigation pumps, circulation fans, feed cycles. The DSP modules are the workhorses for everything that runs on a clock rather than a sensor reading. A typical room uses several DSP modules (the Hydro-X Plus supports 12) for the various timed devices.

The high-current and specialty modules

• DSR-1 (25-amp relay station): a high-current output module supporting up to 25 amps, configurable as a temperature (DST), humidity (DSH), CO2 (DSC), or timer (DSP) device module. Designed with overload protection. Compatible across Hydro-X, Aqua-X, Carbon-X, and Green-X control systems. The right module for high-draw equipment that exceeds the 10-amp rating of the standard modules.
• DSD-1 (dry-contact module): provides a dry-contact or relay solution for connecting and controlling devices that use a dry-contact trigger to activate.
• DSV-1 (valve module): for valve and other specialized device control.
• DCC-1 (dual-condition controller): controls a single device based on more than one condition. The classic example: turn on the exhaust fan when either temperature OR humidity is too high, and shut off CO2 when the exhaust fan turns on. The DCC-1 works in combination with a plug-in module (DSC-1, DSH-1/2, DST-1/2, DSP-1/2, DSV-1, or DSD-1) to add multi-condition logic. This is how growers build sophisticated conditional rules into the system.
• VFD-1 plus Delta-1: the variable-frequency drive control for 3-phase AC motors (industrial fans), used with the Hydro-X Pro. The Delta-1 is a VFD preset with the required parameters ready to operate with the VFD-1 module out of the box. Connected by RJ45 cable.

The device station packs

Trolmaster sells device station packs that bundle the common modules. A typical 6-pack includes 1x DSC-1 (CO2), 1x DSH-1 (humidity), 1x DST-1 (temperature), and 3x DSP-1 (timer). The packs are the economical way to outfit a room with the standard module set. Most commercial flower rooms need at minimum: one temperature module (DST or DSR for high-draw AC), one humidity module (HS-1 for the dehumidifier), one CO2 module (DSC), and several timer modules (DSP) for lights, pumps, and fans.

The Sensor Ecosystem

Sensors feed the controller the environmental data it runs on. The sensor selection determines what the system can measure and therefore what it can control.

The core sensors

• 3-in-1 sensor: measures temperature, humidity, and light (photocell). Standard with the HCS-1 base controller. The photocell detects whether lights are on, enabling day/night programming logic.
• MBS-PRO 4-in-1 sensor: the upgraded sensor that ships with Hydro-X Plus. Measures temperature, humidity, light, and adds VPD calculation. The 4-in-1 is the standard sensor for serious commercial VPD management.
• MBS-S8 CO2 sensor: measures CO2 level in the grow room. Required for closed-loop CO2 enrichment (the controller holds CO2 at setpoint based on the actual reading rather than just running CO2 on a timer). One CO2 sensor per zone.
• PAR sensor: measures photosynthetically active radiation (PPFD) at the canopy. Enables DLI tracking and lighting optimization on the Hydro-X Plus.

The safety sensors

• Smoke detector: integrates with the controller for fire detection. The Hydro-X Plus supports up to 10 smoke detectors with smartphone warning notifications. A genuine value-add: the environmental controller doubles as a fire-safety monitoring system.
• Water-leak detector: detects water leaks (from reservoir overflows, irrigation failures, condensate line problems). The Hydro-X Plus supports up to 10 water-leak detectors with smartphone alerts. For commercial facilities where a flooded room can damage equipment and crops, leak detection is meaningful insurance.

The sensor placement principle

Sensors should sit at canopy height in a representative location, away from direct airflow from AC vents or fans (which would give false-low temperature and humidity readings) and away from direct light on the sensor body (which would create heat-soak errors). For large rooms, multiple sensors in different zones give a more accurate picture than a single sensor, and the multi-stage control on the Hydro-X Plus can use the multiple readings to stage devices for a more uniform environment. Cross-reference: our EC and pH reservoir management pillar covers the broader sensor and measurement discipline for commercial cannabis.

How Trolmaster Integrates With Your Lights, HVAC, and CO2

The integration story is the entire reason Trolmaster matters as a commercial backbone. Here is how it ties together the specific equipment categories the rest of our cluster covers.

Lighting integration

Trolmaster controls lighting in two ways. For ThinkGrow lights (Trolmaster's own lighting brand) and other lights with compatible dimming protocols, the controller dims and switches lights directly through the two lighting control lines (up to 512 ThinkGrow or 80 third-party lights). For traditional lights based on analog signal, including Gavita, a signal converter adapts the Trolmaster output to the light's dimming input.

The lighting integration enables sunrise/sunset simulation (ramping intensity up and down rather than hard on/off), DLI control and tracking (hitting a daily light integral target), spectrum and group control (on compatible lights), and automatic light intensity adjustment. For commercial operations running Gavita 1700e or similar fixtures, the Trolmaster signal converter lets the Hydro-X coordinate lighting with the rest of the environment. Cross-reference: our Gavita lighting guide covers the fixtures, and our Grow Pros Solutions under-canopy guide covers supplemental lighting that integrates into the same control scheme.

HVAC and dehumidification integration

The DST modules control AC and mini-split cooling; the HS-1 module controls dehumidifiers. The integration coordinates the two so they don't fight each other, the classic problem where the dehumidifier dumps heat into the room and the AC works overtime to remove it, or the AC over-cools and drives up relative humidity. The multi-stage temperature and humidity control on the Hydro-X Plus stages multiple devices for a stable environment rather than slamming single devices on and off.

For commercial dehumidifiers specifically, the HS-1 dedicated dehumidifier station handles the high inrush current that the standard DSH modules can't. A Quest 335, Anden A320, or AirGrean AG-D210 connects through the HS-1 for reliable control. Cross-reference: our complete Quest dehumidifier guide, Anden dehumidifier guide, AirGrean dehumidifier guide, and cannabis dehumidifier buyer's guide cover the dehumidification equipment that Trolmaster controls, including the amperage specs that determine whether you need an HS-1 or a DSR-1.

CO2 integration

The DSC module controls CO2 generators and regulators, and the MBS-S8 CO2 sensor enables closed-loop control. The controller runs CO2 enrichment only during lights-on (when plants can photosynthesize and use it), holds CO2 at setpoint based on the sensor reading, and coordinates with exhaust timing so enriched CO2 isn't immediately vented. The DCC-1 dual-condition controller adds rules like shutting off CO2 when the exhaust fan runs. This coordination is why a unified controller delivers better CO2 efficiency than an isolated CO2 controller running on its own timer.

The VPD automation payoff

The integration's ultimate purpose is VPD (vapor pressure deficit) management. VPD is the combined effect of temperature and humidity on plant transpiration, and it's the metric that matters for plant response across growth stages. The 4-in-1 sensor measures VPD directly, and the controller coordinates the AC, dehumidifier, and humidifier to hold VPD at the stage-appropriate setpoint. The result: tighter environmental control than humidity-only or temperature-only management, expressed as better plant response, more consistent quality, and reduced disease risk. Cross-reference: our Anden dehumidifier guide covers VPD targets by growth stage in depth, and the cannabis dehumidifier buyer's guide covers the humidity side of the VPD equation.

The Hard-Wired vs Wireless Positioning

Trolmaster's hard-wired RJ12 architecture is a deliberate design choice that defines the brand against wireless competitors. Worth understanding the tradeoff because it's the central decision axis for the controller category.

The case for hard-wired

• Reliability in electrically noisy environments: commercial grow rooms are full of high-power lighting ballasts, motors, pumps, and electrical noise. Wireless signals can suffer interference, dropouts, and range limitations in this environment. Hard-wired RJ12 connections don't.
• No pairing or signal-strength concerns: the system works because the cable is connected. No wireless pairing failures, no signal-strength troubleshooting, no dead zones in large rooms.
• Deterministic control: a hard-wired command reaches the device every time. For commercial operations where a missed dehumidifier command during peak transpiration can cost a crop, deterministic control is genuine insurance.
• Scalable without signal degradation: adding modules extends the daisy-chain by cable. A large facility doesn't hit the signal-congestion limits that wireless mesh systems can encounter.

The case against (where wireless wins)

• Installation labor: running RJ12 cable takes more installation effort than wireless. For a single small tent, the cabling is overkill versus a wireless monitor.
• Cable management: a large facility accumulates substantial RJ12 cabling that needs organizing and protecting. Wireless systems have no cabling to manage.
• Cost at small scale: for a hobby grower monitoring a single tent, a wireless Pulse monitor is cheaper and simpler than a hard-wired Trolmaster system.

The honest framing

The hard-wired architecture is the right call for commercial cannabis where reliability matters more than installation convenience. For hobby growers monitoring a single tent, the wireless convenience of a Pulse or the integrated simplicity of an AC Infinity Controller may be the better fit. Trolmaster is built for the commercial use case where deterministic, interference-free control of multiple coordinated devices justifies the cabling effort.

The App and Remote Monitoring

The TrolMaster app is a major part of the system's value, turning the controller into a remotely monitored and managed environment.

What the app does

• Remote monitoring: view real-time temperature, humidity, VPD, CO2, and light data from anywhere via cloud connectivity (Amazon cloud service).
• Remote control: adjust setpoints, schedules, and rules from the phone without being in the grow room.
• Push notifications: receive alerts when the environment exceeds setpoints, when a problem arises, or when smoke or water-leak detectors trigger.
• Historical data graphs: review environmental trends over time to diagnose problems, optimize setpoints, and document the grow for compliance or analysis.
• Multi-zone management: monitor and control multiple rooms (each with its own controller) from a single app interface.

The local logging backup

The micro-SD port logs data locally when the internet is unavailable, so the environmental record isn't lost during an outage. This matters for compliance documentation and for diagnosing problems that occurred during a connectivity gap.

The operational value

The remote monitoring is the "don't feel chained to your grow room" feature. A commercial cultivator can leave the facility and still know the environment is holding setpoint, receive an immediate alert if a dehumidifier fails or humidity spikes, and intervene remotely or dispatch someone before a crop is lost. For multi-room operations, the ability to monitor every room from one app interface is a genuine labor and risk-reduction tool. The push notifications specifically are the feature that converts a controller from an automation tool into a crop-protection system: the alert that humidity is climbing at 2am is what lets a grower save a crop that an isolated controller would have lost silently.

The Configuration Framework (Sizing a System for Your Room)

How to spec a Trolmaster system for a specific room. The configuration is module-driven: you pick the controller tier, then add the modules and sensors your equipment requires.

The standard commercial flower room configuration

A typical 12-light commercial flower room with mini-split AC, a commercial dehumidifier, CO2 enrichment, and circulation fans:

• 1x Hydro-X Plus controller (HCS-3) with MBS-PRO 4-in-1 sensor
• 1x MBS-S8 CO2 sensor for closed-loop CO2 control
• 1x DST-2 (240V) or DSR-1 (25-amp) for the mini-split AC depending on amperage
• 1x HS-1 dedicated dehumidifier station for the commercial dehumidifier
• 1x DSC-1 for CO2 enrichment
• 3-4x DSP-1 timer modules for lights, circulation fans, and irrigation pump
• RJ12 cables and splitters to daisy-chain the system
• Optional: smoke detector and water-leak detector for safety monitoring

The small commercial / serious hobby configuration

A smaller single-zone room with simpler equipment:

• 1x Hydro-X controller (HCS-1) with 3-in-1 sensor
• 1x DST module for AC or heating
• 1x DSH-1 or HS-1 for the dehumidifier (HS-1 if the dehumidifier is over 7 amps)
• 2-3x DSP-1 timer modules for lights and fans
• Optional CO2 sensor and DSC-1 if running CO2

The multi-room facility configuration

For a multi-room commercial facility, the standard approach is one Hydro-X Plus controller per flower room (each room is its own control zone with its own sensors and modules), with all controllers managed from the single TrolMaster app. Veg rooms and drying rooms get their own controllers sized to their simpler equipment sets. The Hydro-X Pro with VFD control enters the picture where the facility runs 3-phase industrial air-handling equipment.

The module-count principle

Count your controllable devices and match a module to each. Every device that switches on and off (AC, dehumidifier, CO2, humidifier) needs a device station, and every timed device (lights, pumps, fans) needs a DSP. High-draw devices (over 10 amps) need a DSR-1 (25-amp) rather than a standard 10-amp module, and dehumidifiers specifically need the HS-1 for inrush handling. The device station packs (6-pack with DSC, DSH, DST, and 3x DSP) cover the common set economically; add HS-1 and DSR-1 modules as the specific equipment requires.

Trolmaster vs Pulse vs AC Infinity Head-to-Head

The three brands most commonly compared in the cannabis environmental control category. Each targets a different point on the hobby-to-commercial spectrum. Worth a direct comparison because the decision depends heavily on scale and use case.

What each brand is

• Trolmaster: the professional-grade modular hard-wired control system. Full equipment control (not just monitoring), commercial reliability, modular expandability. Targets serious hobby through industrial.
• Pulse: the wireless monitoring specialist. Pulse devices (Pulse One, Pulse Pro) are primarily environmental monitors with data logging and alerts, with control capability through the Pulse Hub and smart plugs. Targets hobby through small commercial, popular for monitoring-first use cases.
• AC Infinity: the integrated ecosystem brand. The Controller 69 and UIS (Universal Intelligence System) ecosystem tie AC Infinity's own fans, dehumidifiers, and accessories into a unified controller. Targets hobby through prosumer, with the strongest value when running AC Infinity's own equipment.

Where Trolmaster wins

Full commercial equipment control. Trolmaster controls any AC, mini-split, commercial dehumidifier, CO2 system, and lighting through dedicated modules. Pulse is monitoring-first with lighter control; AC Infinity's control is strongest within its own equipment ecosystem. For commercial operations running Quest dehumidifiers, Gavita lights, and mini-split AC, Trolmaster's device station modules control all of it.

Hard-wired reliability. The RJ12 architecture eliminates the wireless interference and dropout risk that matters in electrically noisy commercial facilities. Pulse and AC Infinity rely more on wireless connectivity.

Modular expandability at commercial scale. Trolmaster scales by adding modules to the daisy-chain, supporting complex multi-device rooms (8 temperature, 8 humidity, 4 CO2, 12 timer on the Plus). The commercial device capacity exceeds what the hobby-oriented competitors target.

Multi-stage environmental control. The Hydro-X Plus stages multiple devices for a stable environment, the sophistication commercial VPD management requires.

Where Pulse wins

Monitoring simplicity and cost. For growers who primarily want to monitor the environment with data logging and alerts (rather than control every device), Pulse is simpler and cheaper. The wireless setup is genuinely plug-and-play.

Data and analytics focus. Pulse's strength is environmental data: clean dashboards, VPD tracking, historical analysis. For data-driven hobby and small commercial growers, the Pulse experience is polished.

No installation labor. Wireless means no cable running. For a single tent or small room, Pulse is up and running in minutes.

Where AC Infinity wins

Integrated ecosystem value. If you run AC Infinity fans, dehumidifiers, and accessories, the Controller 69 and UIS ecosystem ties them together seamlessly at a price point well below commercial Trolmaster. For hobby and prosumer grows built on AC Infinity equipment, the integration is excellent.

Cost at hobby scale. AC Infinity's controllers and equipment are priced for the hobby and prosumer market, substantially below a commercial Trolmaster system.

Ease of use for smaller grows. The AC Infinity app and controller are designed for accessibility, with a gentler learning curve than a full Trolmaster commercial system.

The decision rules

Commercial cannabis facility with multiple coordinated devices (AC, commercial dehumidifier, CO2, lighting): Trolmaster. The full equipment control and hard-wired reliability justify the investment.

Serious commercial operation prioritizing deterministic control and modular expansion: Trolmaster Hydro-X Plus.

Hobby or small commercial grower who primarily wants monitoring and alerts: Pulse.

Hobby or prosumer grow built on AC Infinity equipment: AC Infinity Controller 69 / UIS ecosystem.

Single 4x4 to 5x5 tent: AC Infinity or Pulse. A full Trolmaster system is overkill for a single tent with minimal equipment.

Multi-room facility needing per-room control zones managed from one app: Trolmaster, one Hydro-X Plus per room.

The Cost Economics

Trolmaster is a system, not a single product, so the cost depends on the controller tier and module count. Worth walking through realistic configurations.

Per-component cost (2026 retail, approximate)

• Hydro-X (HCS-1) controller with 3-in-1 sensor: $309
• Hydro-X Plus (HCS-3) controller with 4-in-1 sensor: $650-750
• MBS-S8 CO2 sensor: $180-220
• PAR sensor: $150-200
• DST-1/DST-2 temperature module: $55-75
• DSH-1/DSH-2 humidity module: $55-75
• DSC-1 CO2 module: $55-75
• DSP-1/DSP-2 timer module: $45-65
• DSR-1 25-amp relay station: $90-120
• HS-1 dehumidifier station: $90-130
• DCC-1 dual-condition controller: $40-60
• Device station 6-pack (DSC, DSH, DST, 3x DSP): $280-340
• Smoke detector: $40-60
• Water-leak detector: $40-60
• RJ12 cables and splitters: $5-20 each

The full commercial flower room system cost

A complete Hydro-X Plus system for a 12-light commercial flower room:

• Hydro-X Plus controller with 4-in-1 sensor: $700
• CO2 sensor: $200
• DSR-1 for mini-split AC: $110
• HS-1 for dehumidifier: $110
• DSC-1 for CO2: $65
• 4x DSP-1 for lights, fans, pump: $240
• Smoke + water-leak detectors: $100
• RJ12 cables and splitters: $80
• Total: approximately $1,600-1,700 per flower room

The base HCS-1 system cost

A simpler HCS-1 system for a small commercial or serious hobby room:

• Hydro-X (HCS-1) controller with 3-in-1 sensor: $309
• Device station 6-pack: $300
• HS-1 for dehumidifier (if over 7 amps): $110
• RJ12 cables and splitters: $50
• Total: approximately $770 for a complete base system

The cost framing

Trolmaster sits above hobby controllers (AC Infinity, Pulse) on price but the cost is justified at commercial scale by what it protects. A $1,600 Hydro-X Plus system per flower room coordinates the equipment that protects a $200,000-400,000-per-cycle crop. The push-notification alert that catches a dehumidifier failure at 2am pays for the entire system in a single saved crop. For commercial operations, the controller is cheap insurance on the rest of the facility investment. For hobby grows where the crop value doesn't justify the system cost, the simpler hobby controllers are the appropriate choice.

Utility and integration value

Beyond crop protection, the coordination delivers operating efficiency. Devices that coordinate (AC not fighting the dehumidifier, CO2 not vented by exhaust) use less energy than isolated devices working against each other. The DLI control on the Hydro-X Plus optimizes lighting energy by hitting the daily light integral target without overshooting. The efficiency gains are real but secondary to the crop-protection value.

Common Trolmaster Problems and Diagnostic Logic

"Dehumidifier tripping the module or not switching reliably"

The most common configuration error. Cause: a high-draw commercial dehumidifier connected to a standard DSH module that can't handle the inrush current. Fix: use the HS-1 dedicated dehumidifier station, which is engineered for dehumidifier inrush current, or a DSR-1 25-amp relay station for very high-draw units. The manufacturer caution is explicit: use dehumidifiers under 7 amps on a standard DSH; anything larger needs the HS-1.

"Sensor reading seems inaccurate"

Three common causes. Sensor placement in direct airflow from an AC vent or fan gives false-low readings; relocate to representative canopy-height air. Sensor in direct light gives heat-soak errors on temperature; shade the sensor body. Sensor too close to a heat-or-moisture source (dehumidifier exhaust, CO2 burner) gives localized readings; relocate to a representative location.

"App not connecting or showing offline"

Verify the controller's internet connection (the system uses Amazon cloud service for app connectivity). Check the network connection at the controller. The micro-SD local logging continues during connectivity gaps so data isn't lost. If the controller is online but the app shows offline, re-verify the app account pairing and network.

"Devices fighting each other (AC and dehumidifier cycling against each other)"

This indicates setpoints or staging that need tuning. Use the multi-stage control on the Hydro-X Plus to stage devices rather than running them on overlapping single setpoints. Set appropriate setpoint differentials (hysteresis) so devices don't rapid-cycle. Use the DCC-1 dual-condition controller to add coordination logic (for example, prevent the AC and dehumidifier from creating a cycle).

"CO2 being wasted / vented immediately"

The CO2 enrichment and exhaust timing aren't coordinated. Configure the system so CO2 runs only during lights-on and pauses during exhaust cycles. Use the DCC-1 to shut off CO2 when the exhaust fan runs. This coordination is a primary reason to run a unified controller rather than an isolated CO2 controller.

"Lights not dimming / not responding to the controller"

For third-party lights (Gavita and other analog-signal fixtures), verify the signal converter is installed and configured. Trolmaster controls ThinkGrow lights directly but needs the signal converter to adapt its output to analog-dimming fixtures. Verify the lighting line assignment and dimming protocol match the fixture.

Cross-reference: our Gavita lighting guide covers the fixture-side dimming setup, and the cannabis dehumidifier buyer's guide covers the dehumidifier amperage specs that determine module selection.

What We'd Tell You at the Counter

The honest summary, framed the way we'd say it face to face.

If you're running a commercial cannabis flower room with multiple devices that need to coordinate, AC, a commercial dehumidifier, CO2, and lighting, Trolmaster is the integration backbone that ties them together off one set of sensors and one VPD-aware program. The Hydro-X Plus is the right controller tier for most commercial flower rooms; the touchscreen, expanded device capacity, DLI control, and multi-stage environmental control are what commercial operations need.

Use the HS-1 dedicated dehumidifier station for your commercial dehumidifier, not a standard DSH module. Commercial dehumidifiers draw high inrush current that the standard humidity modules can't handle reliably. This is the single most common Trolmaster configuration mistake.

The hard-wired RJ12 architecture is the right call for commercial reliability. Yes, it takes more installation effort than wireless, but in an electrically noisy commercial facility the deterministic, interference-free control is worth the cabling. For a single hobby tent, a wireless Pulse or an AC Infinity controller is the better fit; for a commercial facility, the hard-wiring pays off.

Set up the app and the push notifications. The remote monitoring and the alerts are what convert the controller from an automation tool into a crop-protection system. The 2am alert that humidity is climbing because a dehumidifier failed is what lets you save a crop. For multi-room facilities, managing every room from one app interface is a genuine labor and risk-reduction tool.

Run one controller per room. Each flower room is its own control zone with its own sensors and modules. Multi-room facilities run one Hydro-X Plus per room, all managed from the single app. Veg and drying rooms get their own controllers sized to their simpler equipment.

Spec the system by counting your devices. Every device that switches needs a device station; every timed device needs a DSP; high-draw devices need a DSR-1; dehumidifiers need an HS-1. The device station 6-pack covers the common set economically. Add the specialty modules as your specific equipment requires.

For hobby grows in a single tent, this is more system than you need. An AC Infinity Controller 69 or a Pulse monitor handles a simple tent setup at a fraction of the cost. Trolmaster earns its keep when you have multiple commercial devices that need to coordinate.

The cluster of articles we've written reinforces this one. Our Gavita lighting guide covers the fixtures Trolmaster dims through the signal converter. Our Quest, Anden, and AirGrean dehumidifier guides plus the cannabis dehumidifier buyer's guide cover the dehumidification equipment Trolmaster controls through the HS-1. The Grow Pros Solutions under-canopy guide covers supplemental lighting that integrates into the same control scheme. The EC and pH reservoir management guide covers the broader measurement discipline that complements environmental control.

Modern Farms stocks the complete Trolmaster lineup through commercial accounts: Hydro-X (HCS-1), Hydro-X Plus (HCS-3), and Hydro-X Pro controllers; the full device station module range (DST-1/2 temperature, DSH-1/2 humidity, DSC-1 CO2, DSP-1/2 timer, DSR-1 25-amp relay, HS-1 dehumidifier station, DCC-1 dual-condition controller, VFD-1 plus Delta-1 for 3-phase fans); sensors (3-in-1, MBS-PRO 4-in-1, MBS-S8 CO2, PAR); safety sensors (smoke and water-leak detectors); device station packs; and RJ12 cables and splitters. Commercial accounts get system-design consultation to spec the right controller tier and module set for your room, plus integration guidance for connecting your Gavita lights, Quest/Anden/AirGrean dehumidifiers, and CO2 systems. If you're automating a new commercial facility, integrating existing equipment into a unified control system, or scaling environmental control across multi-room operations, we're happy to help in person or by phone. We don't upsell.

"This article is for informational and educational purposes only. Cannabis cultivation laws vary by state and locality. Grow only in accordance with the laws that apply to you, and where required, only as a licensed grower. Modern Farms sells equipment and supplies and does not provide legal advice."
