Inline Fan and Carbon Filter Sizing: A Retailer's Honest Breakdown
The fan and the filter aren't two separate purchases, they're one system, and buying them as if they're unrelated is the most common mistake we see. A fan sized right for your tent paired with a filter that can't move that much air just means more noise and less actual odor control, not more airflow. This is a straightforward breakdown of what we actually stock, matched into pairs that work together, plus one honest gap in our lineup you should know about before you buy.
The 30-Second Answer
- Match fan CFM to filter CFM, not just tent size. A filter rated below your fan's output becomes the bottleneck, not the fan.

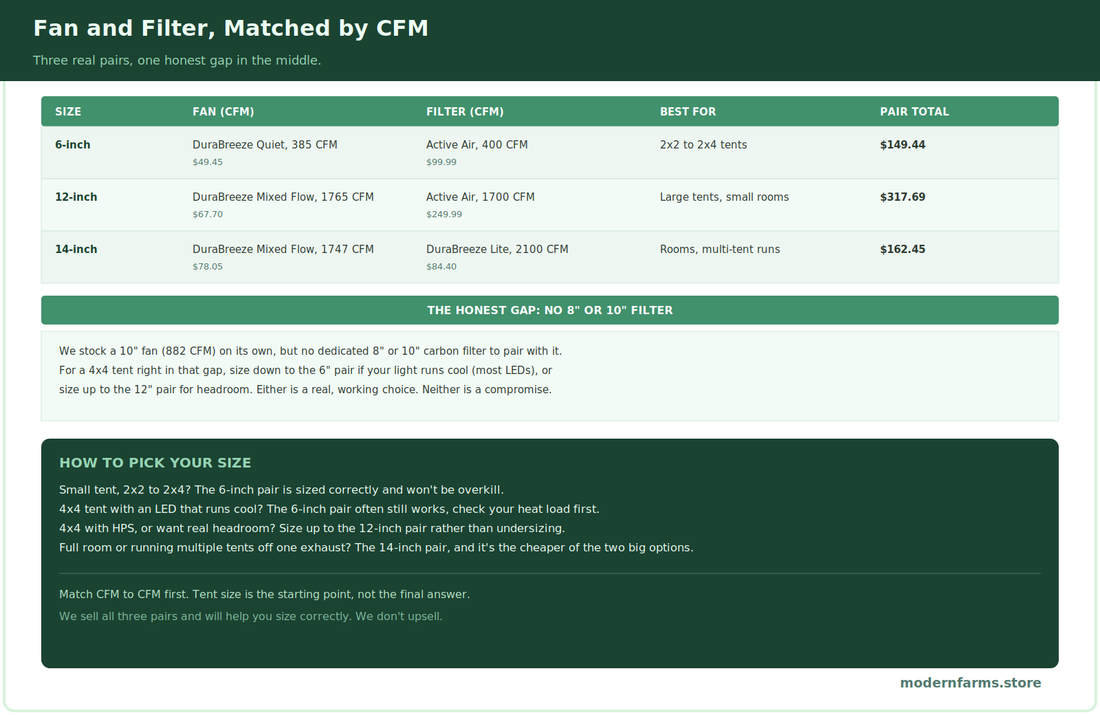

- We stock three genuinely matched pairs: 6", 12", and 14". Each fan's CFM lines up closely with a filter rated for the same range.
- There's a real gap between 6" and 12". We don't carry a dedicated 8" or 10" carbon filter. For a 4x4 tent right in that middle ground, you'll size up or down.
- Bigger isn't always pricier. Our 14" pair costs less total than our 12" pair, because of which specific filter model sits at each size. Worth checking before assuming size dictates price.
We sell the full lineup below and will help you match a real fan to a real filter for your actual tent, not just point you at whatever's biggest.
Why the fan and filter have to be sized together
A carbon filter works by pulling air through a bed of activated carbon, and that carbon bed creates resistance, what's usually called static pressure. A fan rated for, say, 1765 CFM in open air will move meaningfully less than that once it's pulling air through a filter, through ducting, and through a tent's intake ports. If you pair a strong fan with a filter rated well below the fan's output, the filter becomes the bottleneck, air still moves, but slower than the fan's rating suggests, and the fan works harder and louder than it needs to for the actual airflow you're getting. The fix isn't complicated: pick a filter rated at or above your fan's CFM, not just a filter that physically bolts onto the same duct size.
The 6-inch pair: right-sized for 2x2 to 2x4 tents
The DuraBreeze Quiet Fan at 385 CFM paired with the Active Air Carbon Filter at 400 CFM is a genuinely well-matched pair, the filter's rating sits just above the fan's, which is exactly the relationship you want. This is sized correctly for smaller tents, and it's also a reasonable choice for a 4x4 tent running a cooler LED light where you don't need to move a large volume of air quickly. At $149.44 for the pair, it's also the most affordable of the three tiers we carry.
The honest gap: no dedicated 8" or 10" filter
We do stock a 10-inch fan on its own, the DuraBreeze Mixed Flow at 882 CFM for $40.50, but we don't carry a carbon filter built specifically for that size or CFM range. This matters because a 4x4 tent, the single most common size, often sits right in that gap between what the 6-inch pair handles comfortably and what the 12-inch pair is built for. Rather than pretend a mismatched pair is fine, the honest guidance is this: if your light runs cool, most modern LEDs do, the 6-inch pair frequently handles a 4x4 tent without issue, since heat load and odor volume in a well-managed 4x4 aren't usually enough to overwhelm 400 CFM of filtration. If you're running a hotter light like HPS, growing multiple plants with heavy odor output, or you just want real headroom rather than running right at capacity, size up to the 12-inch pair instead of trying to force the 10-inch fan into a mismatched filter situation.
The 12-inch pair: large tents and small rooms
The DuraBreeze Mixed Flow 12" fan at 1765 CFM pairs with the Active Air 12"x39" filter rated at 1700 CFM, another genuinely close match where the filter's rating sits just under the fan's peak output, which is normal and expected since real-world CFM always drops once you add filter and ducting resistance. This tier is sized for larger tents, 5x5 and up, or a small dedicated grow room. At $317.69 for the pair, this is the more expensive of the two larger tiers we carry, largely because of the Active Air filter's price at this size specifically.
The 14-inch pair: rooms and multi-tent runs, and cheaper than the 12-inch
This is the pair worth double-checking before you assume bigger always costs more. The DuraBreeze Mixed Flow 14" fan at 1747 CFM pairs with the DuraBreeze Lite 14"x40" filter at 2100 CFM, and that filter specifically runs $84.40, dramatically less than the Active Air 12" filter's $249.99. The result is a 14-inch pair that totals $162.45, which is genuinely less than the $317.69 12-inch pair, despite moving comparable or greater airflow. If you're sizing for a full room or exhausting multiple tents through one central fan and filter, it's worth pricing this tier specifically rather than assuming the 12-inch option is the more economical middle ground.
What we'd actually tell you about the 10-inch fan on its own
The 10-inch DuraBreeze at 882 CFM and $40.50 is a genuinely useful fan, it's just not part of a matched filter pair in our current lineup. It works well as a booster or circulation fan inside a larger tent or room, or as an intake fan paired with one of the larger exhaust setups above, where it doesn't need its own dedicated odor filtration since it's pulling air in rather than pushing filtered air out. Where it doesn't make sense is as your sole exhaust fan if odor control matters to your setup, since running it without a properly matched filter means either no odor control at all or forcing it through a filter sized for a different CFM range than it's rated for.
What We'd Tell You at the Counter
If you brought us this exact question at the counter, we'd ask two things: what size is your tent, and what's your light. A small tent or a cool-running LED in a 4x4 usually does fine on the 6-inch pair. A hot light, a bigger tent, or genuine odor concerns push you to the 12-inch pair. And if you're exhausting a whole room or multiple tents, price out the 14-inch pair before assuming the 12-inch is the more affordable middle step, because in our current lineup, it isn't.
We don't have a dedicated 8-inch or 10-inch filter right now, and we'd rather tell you that plainly than sell you a mismatched pair. We sell all three matched tiers and will help you size the right one for your actual room. We don't upsell.
Shop the fan and filter lineup
Three matched pairs, sized by CFM, not just tent dimensions.
Frequently asked questions
Do the fan and filter need to be the exact same duct diameter?
It helps for a clean, low-resistance install, but what matters most is CFM matching. A filter rated at or slightly above your fan's CFM will work even with a small reducer, though matching diameters keeps installation simpler.
What should I do for a 4x4 tent since there's no 8" or 10" filter?
If your light runs cool, most LEDs do, the 6-inch pair often handles a 4x4 tent fine. If you run a hotter light or want real headroom, size up to the 12-inch pair rather than running an unmatched fan and filter combination.
Is the 10-inch fan worth buying if there's no matching filter?
Yes, as a circulation or intake fan where you don't need dedicated odor filtration on that specific fan. It's not the right choice as your sole exhaust fan if odor control matters to your setup.
Why is the 14-inch pair cheaper than the 12-inch pair?
The specific filter models differ in price independent of size, the DuraBreeze Lite 14" filter costs less than the Active Air 12" filter. It's worth pricing both tiers rather than assuming smaller always means cheaper.
How often does a carbon filter need to be replaced?
Both the Active Air and DuraBreeze filters we carry are rated for up to roughly two years of life, depending on environmental factors like humidity and how continuously the fan runs.
Sizing your ventilation is one piece of the environmental picture; if you're also dialing in humidity and temperature targets, our VPD chart guide covers how airflow and climate control work together. Because, as always, we don't upsell.
